ASR1000機械軸承精密直驅轉臺 | ASR1000 Mechanical-Bearing Direct-Drive Rotary Stage
Aerotech ASR1000系列直接驅動轉臺是為了滿足高性能精密加工的苛刻要求。低慣量馬達和高精度編碼器，實現了速度和精度的理想結合。

ASR1000 Series Specifications

Model ASR1000
Travel ±360° Continuous
Shaft Diameter 19 mm
Shaft Thread 0.7500-32NS-3
Maximum Aperture Diameter 14 mm ±0.5 mm
Drive System Direct-Drive Brushless Servomotor
Feedback 8192 cycles/rev; analog output encoder (standard)
Maximum Rotary Speed(1) 2000 rpm
Accuracy(1) ±72.8 μrad (±15 arc sec)
Repeatability(1) ±14.6 μrad (±3 arc sec)
Inertia 9.0 x 10-5 kg?m2
Nominal Stage Weight 4.4 kg
Maximum Load Axial 3.0 kg
Moment 5 N?m
Motor Type BM250
Continuous Current, Stall Apk 10
Arms 7.1
Bus Voltage Up to 320 VDC
Axis Error Motion Axial 2.5 μm
Radial 5.0 μm
Material Stage Shaft Stainless Steel
Stage Body Aluminum
Finish Stage Shaft Stainless Steel
Stage Body Black Anodize
  1. Maximum speed based on stage capability; maximum application velocity may be limited by system data rate and system resolution.

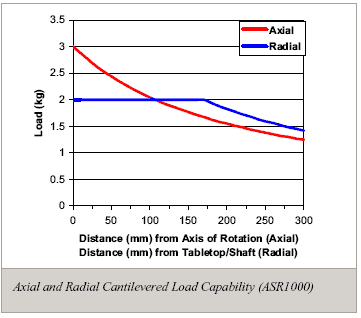

  • Axial and Radial Cantilevered Load Capability (ASR1000)

Dimensions

  • ASR1000

Ordering Information

Ordering Example

ASR1000 -10 -MS -RE8192AS

Ordering Options

Series Drive Motor Connector Position Transducer
ASR1000 -10 -HPD
-25D 		-RE8192AS

ASR Series Direct-Drive Rotary Stage

Option Description
ASR1000 Direct-drive rotary stage

Drive Motor

Option Description
-10 Direct-drive brushless motor

Connector Option

Option Description
-HPD One high-power D and one 25-pin D-style connector option
-25D Two 25-pin D-style connector option

Note: -25D option required for direct connection to CMS on some Aerotech stages. Consult Aerotech for applicability.

Position Transducer

Option Description
-RE8192AS Incremental encoder, 8192 ppr

Options

Option Description
-MP Mounting plate with 75 mm square hole pattern
